Deep Foundations
Initially responsible for the drilling of test piles in the summer of 2015, the expertise and rigor demonstrated by Forage CBF quickly propelled it to the rank of deep foundations advisor to the managers of this emblematic project!
Client
Signature on the Saint Lawrence
Expertise(s)
Test piles
Bored piles
Box piles
Berlin Walls
Drilling
Driven piles
Piles
Sheet pile support
Location
Montreal and Brossard
Year
2015 to 2019
Raise your expertise to the level of expert consultant
Driven piles
2000
Number of sq ft of supports
50000
Combine strategic vision and technical mastery on each project

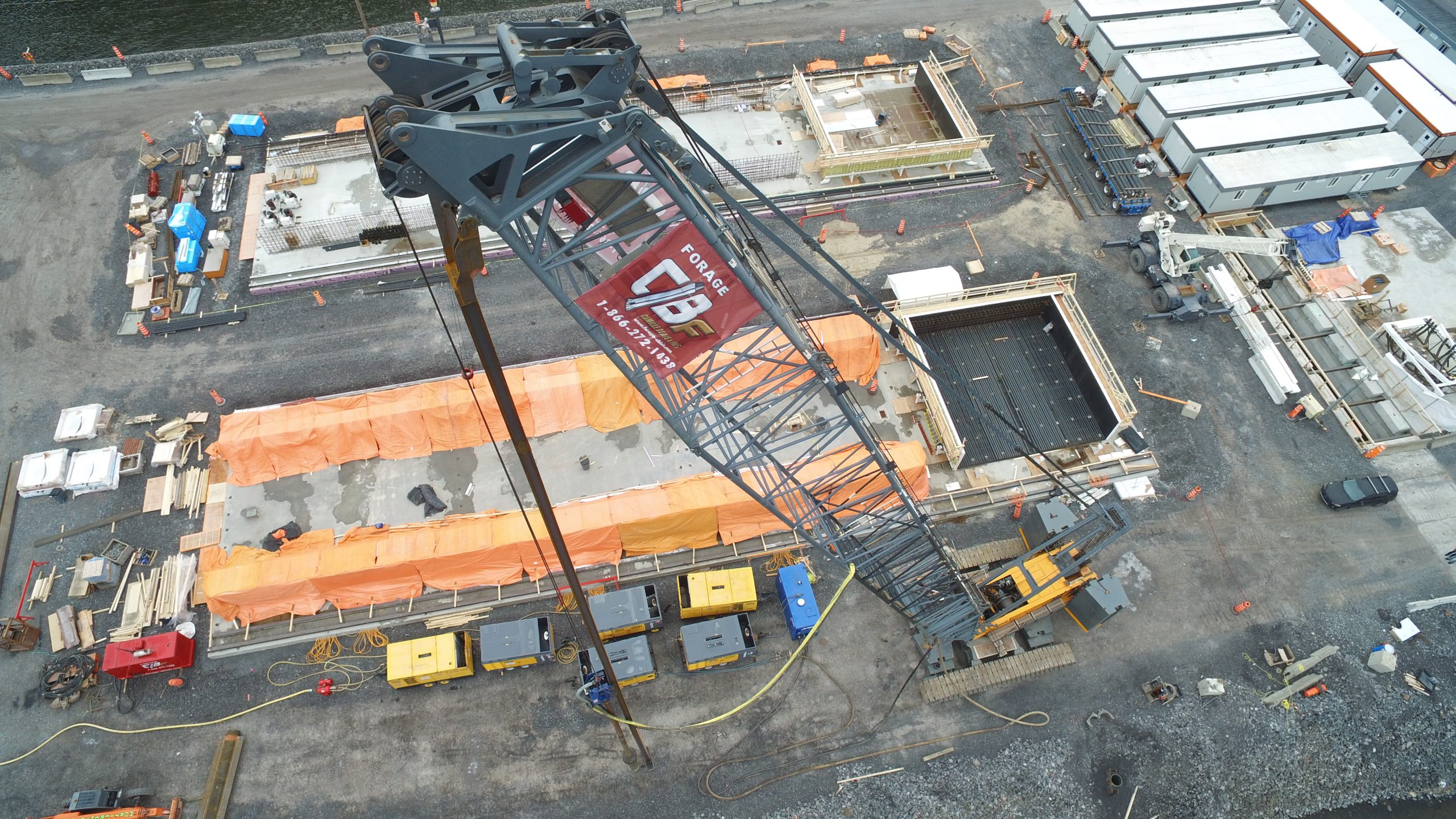

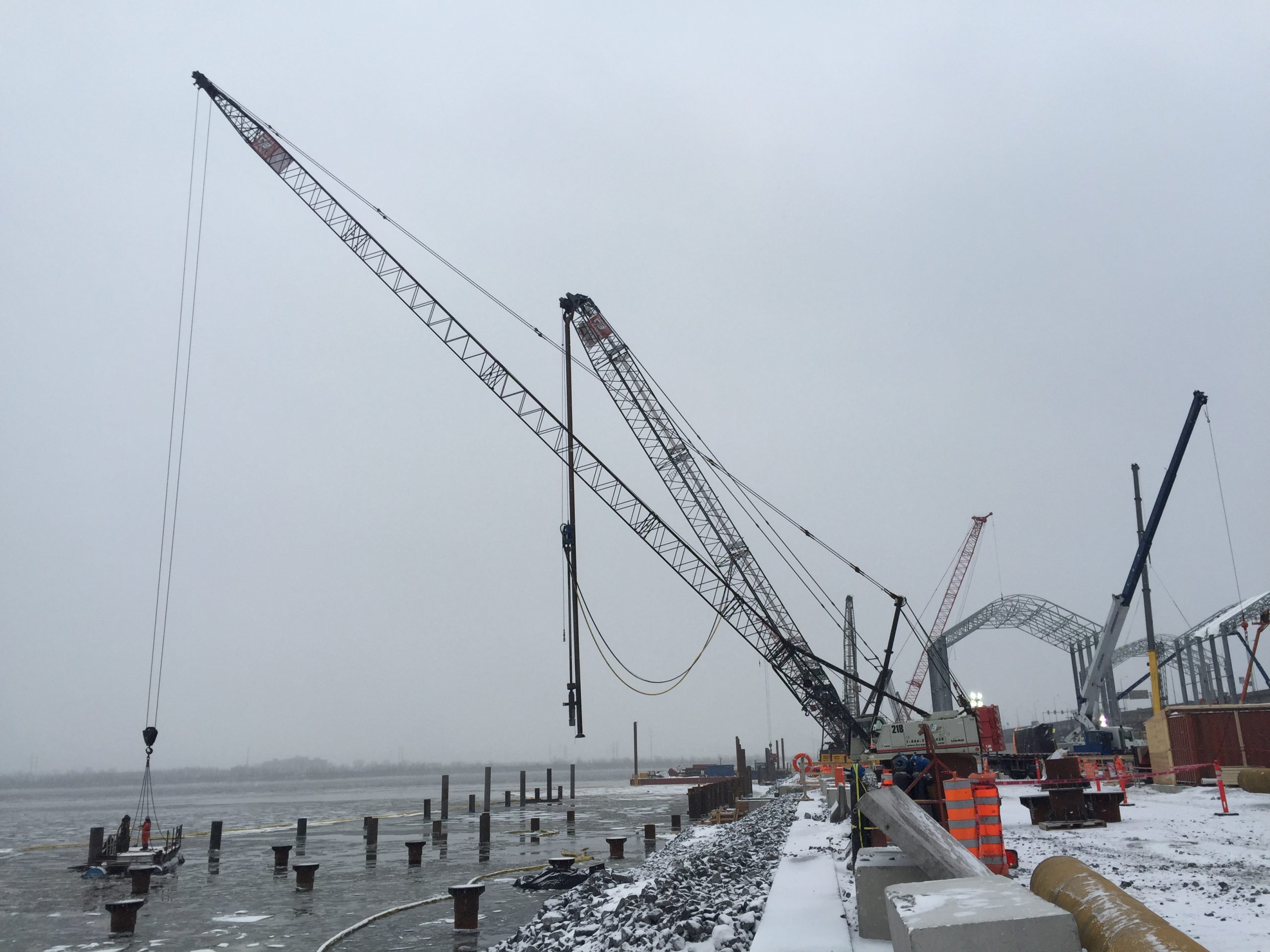

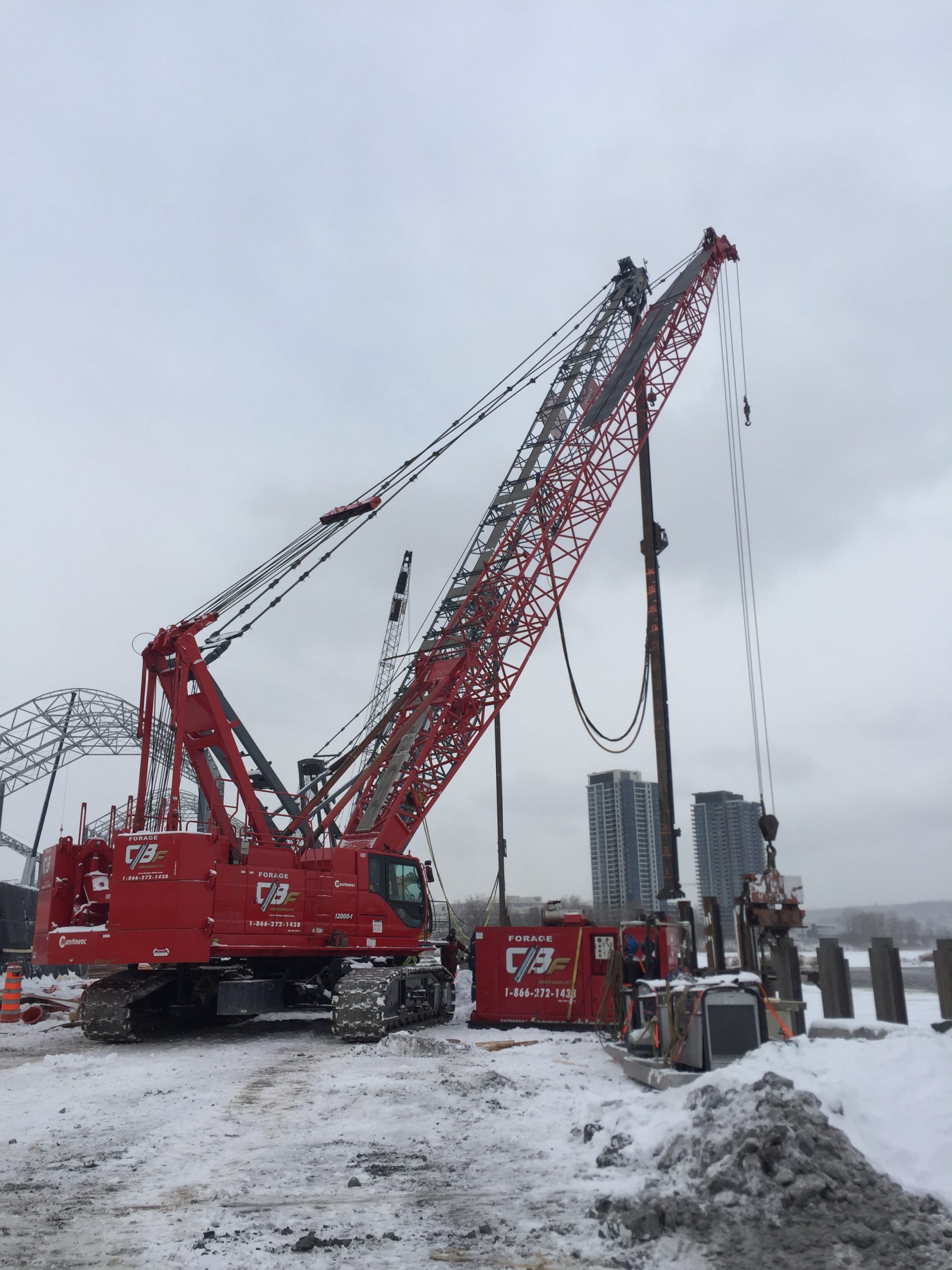

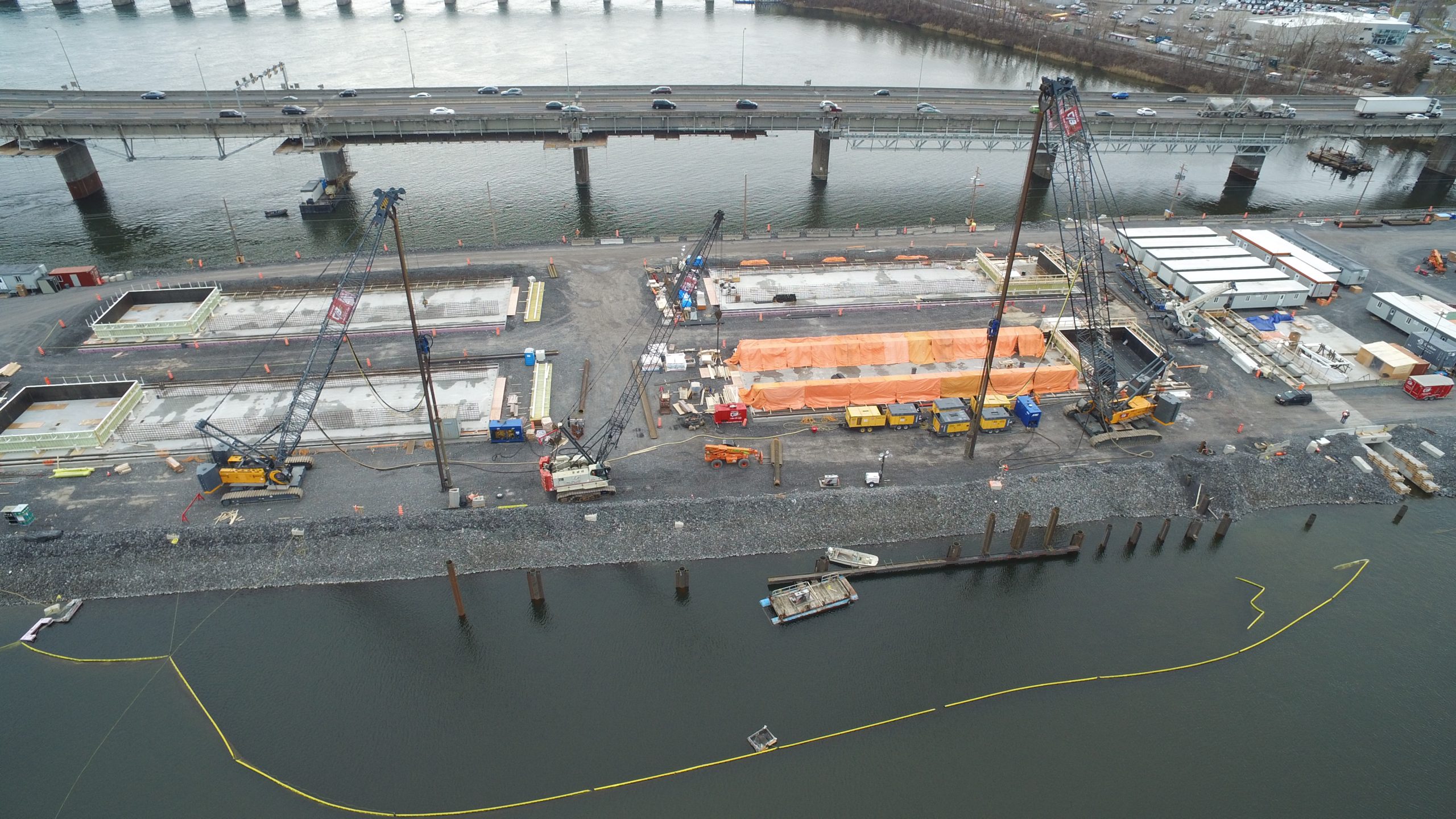

From the very beginning of the construction project, we installed the test piles required to validate the design of the bridge foundations. Subsequently, our work included the construction of a pier on bored piles, essential to the execution of the bridge works, as well as the installation of box piles for various structures on the project.
A job done according to the rules of the art

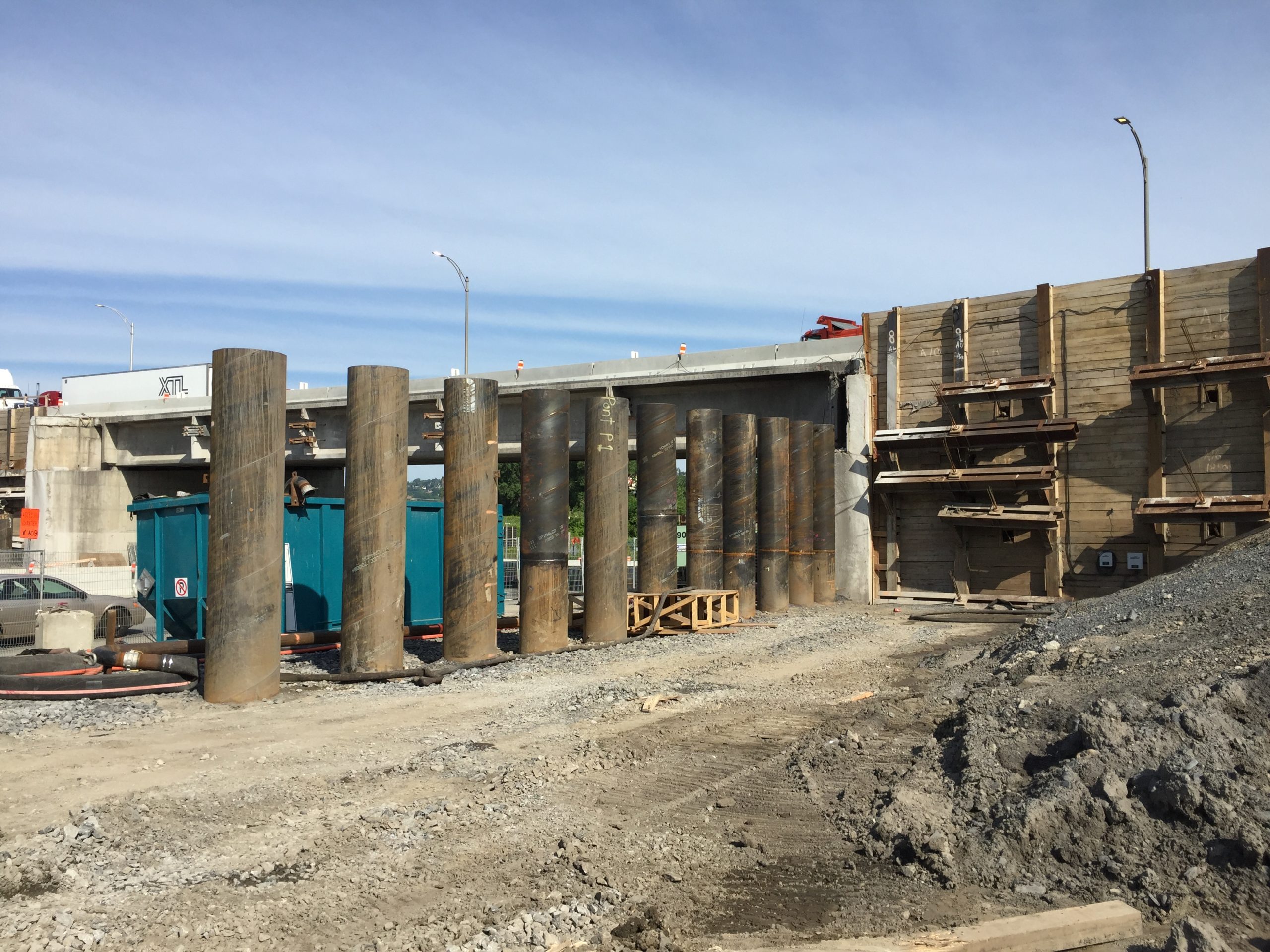

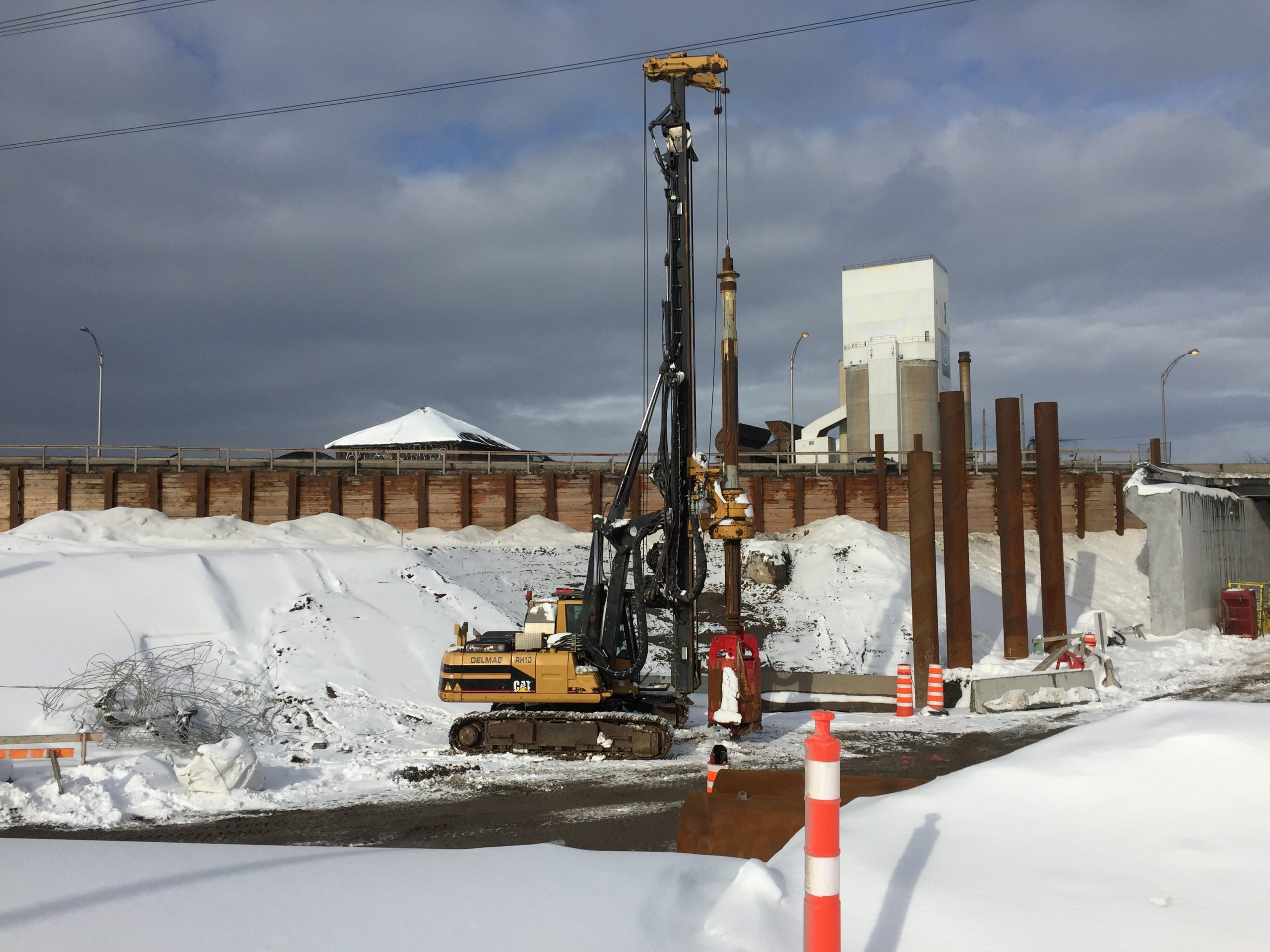

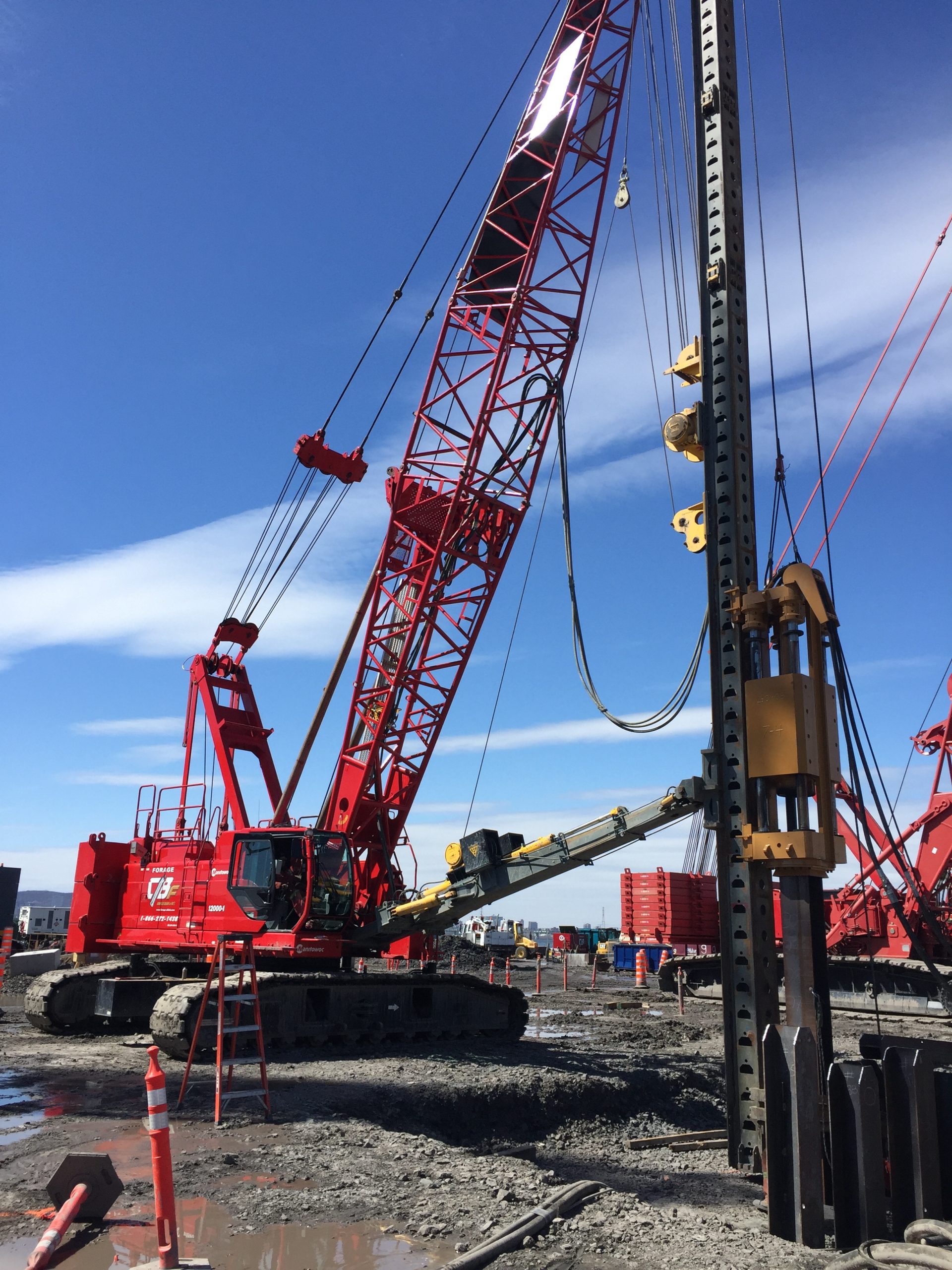

The scope of the work carried out by Forage CBF demonstrates our expertise in deep foundations. Our teams installed 350 caisson piles ranging from 700 mm to 2.0 m in diameter, 500 bored piles measuring 624 mm in diameter, over 1,000 bored piles measuring 406 mm in diameter, and over 2,000 driven piles. In addition, we installed over 50,000 sq ft of retaining walls, including Berlin walls and sheet piles.
